How Tube Bundles Improve Reliability in Harsh Industrial Environments

A plant can be running smoothly. Analyzers and transmitters can appear to perform as expected. Then a small tubing issue starts causing big problems.

The first signs are often bad readings, slower response times, extra maintenance, or downtime. None of those issues immediately point back to the real cause: the tubing line itself.

That is what makes tubing problems difficult to identify. The line may look small compared to the rest of the system. However, it plays an important role in carrying samples, pressure signals, and process media through the facility. When cold temperatures, moisture, corrosion, long runs, or physical wear affect tubing, even a small issue can start affecting overall performance.

Tube bundles, also called tubing bundles, help protect these critical lines by combining process tubing, heat tracing, insulation, and outer protection into one ready-to-install assembly. This blog explains what tube bundles are, where they are used, and how they help improve reliability in harsh industrial environments.

What is a Tube Bundle?

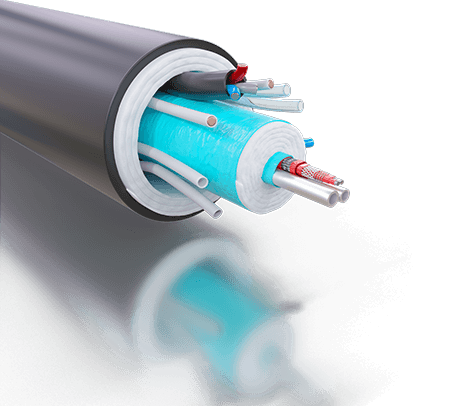

A tube bundle is a pre-engineered assembly that combines one or more process tubes with heat tracing, insulation, and a protective outer jacket. Instead of installing bare tubing and adding heat trace, insulation, and protection separately in the field, these elements are built together as one integrated system.

Primarily, that matters because tubing is not just there to connect two points. In many industrial applications, tubing must also maintain temperature, resist environmental exposure, and hold up over time.

A tube bundle is designed around those needs from the start. So, depending on the application, it can help support freeze protection, temperature maintenance, sample transport, analyzer performance, and long-term line protection.

Where Tube Bundles Are Commonly Used

Tube bundles are used across industrial environments where exposed tubing needs better protection, more stable temperature control, and more reliable long-term performance.

Common industries include:

• Oil and gas production
• Refineries
• Chemical plants
• Pharmaceutical manufacturing
• Power generation
• Pulp and paper
• Food processing
• Other process industries

These are the kinds of environments where tubing may be exposed to cold temperatures, moisture, chemical contact, long runs, and other conditions that can affect performance over time.

Additionally, tube bundles are also commonly used for analyzer sample lines, impulse lines to transmitters, and long runs between field instruments and the systems that depend on them. In these applications, protecting the tubing path can make a meaningful difference in accuracy, maintenance, and uptime.

Common Challenges Exposed Tubing Faces in Harsh Environments

In general, harsh environments create a long list of problems for exposed tubing. Some are obvious, like freezing temperatures or corrosion. Meanwhile, others build more slowly and show up first as poor performance, drifting readings, or repeated maintenance issues.

Consequently, the challenge is that tubing problems do not always announce themselves clearly. A line may still be in place. However, if it is losing heat, taking moisture, or the surrounding environment is wearing it down, performance can begin to slip before anyone notices the tubing is the cause. Below are a few common challenges with harsh environments:

Freezing Temperatures

Cold conditions can turn sample and impulse lines into ice plugs. As a result, the tubing may no longer deliver the sample or signal the connected device is expecting, which can lead to bad readings or loss of response. In general, freeze-ups are one of the clearest examples of how a small tubing issue can become a larger operating problem.

Long Tubing Runs

Longer tubing runs create more opportunity for heat loss, pressure drop, and inconsistent performance. Additionally, this becomes especially important when sample taps, analyzers, and transmitters are spread across a large area. Therefore, it can be more difficult to maintain stable conditions from one end to the other.

Moisture, Corrosion, and Washdowns

Moisture intrusion, corrosive vapors, and washdown conditions can wear down exposed tubing systems over time. Furthermore, even when the tubing itself still looks intact, fittings, insulation, and surrounding materials may begin to degrade. As a result, overall line performance can suffer.

Physical Wear and Vibration

Exposed tubing often has to hold up against vibration, foot traffic, ladders, tools, and general plant activity. Moreover, in busy areas, that physical wear can become a reliability issue of its own, especially when the tubing has limited protection.

Measurement Performance

One of the biggest challenges is that tubing problems often show up first in the measurement. A reading may drift. Likewise, a response may slow down. As a result, maintenance teams may investigate what appears to be an instrument issue, only to find the real problem started with the tubing line feeding it.

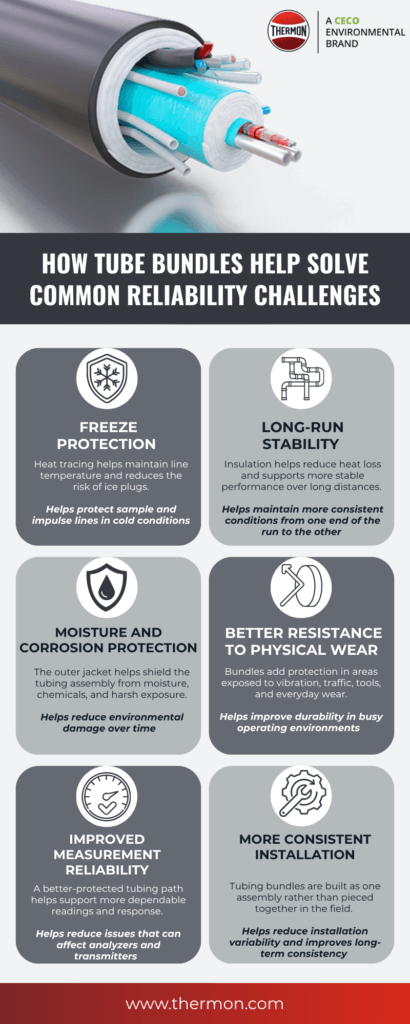

How Tube Bundles Help Improve Reliability

Tube bundles address many of the same conditions that make exposed tubing difficult to manage in the field. Overall, by combining process tubing, heat tracing, insulation, and outer protection into one integrated assembly, they help reduce some of the most common causes of line performance issues in harsh industrial environments.

Freeze Protection

When freezing temperatures are a concern, heat tracing helps maintain line temperature and reduce the risk of ice plugs in sample and impulse lines. Therefore, that helps the line continue delivering the sample or signal the connected equipment depends on.

More Stable Performance Over Long Runs

Long tubing runs create more opportunity for heat loss and inconsistent conditions. However, insulation helps reduce that loss. In addition, the bundled construction helps support more stable performance from one end of the run to the other.

Protection from Moisture, Corrosion, and Harsh Exposure

The outer jacket helps protect the tubing assembly from moisture, chemicals, UV exposure, and other environmental conditions that can wear down exposed lines over time. Therefore, that added protection can help reduce damage and extend the life of the installation.

Better Resistance to Physical Wear

In areas with vibration, foot traffic, tools, or other physical wear, bundled tubing offers more protection than a bare line alone. As a result, the tubing path can be more durable in busy operating environments.

Improved Measurement Reliability

Because tubing bundles help maintain line condition and protect the tubing path, they also help support more dependable readings. Therefore, when the line feeding the analyzer or transmitter is better protected, the connected equipment has a better chance of performing as expected.

A More Consistent Installation

Tube bundles are built as one assembly rather than pieced together in the field. As a result, they help reduce installation variability and creates a more complete solution for applications where long-term reliability matters.

Why Tube Bundles Are the Smart Choice for Harsh Environments

A tube bundle offers more than just a different way to run tubing; it provides a more complete approach to building around performance from the start. Instead of assembling tubing, heat tracing, insulation, and outer protection separately in the field, designers integrate everything to work together as one system. In practice, this integrated design helps support:

• More consistent installation
• Faster installation compared with field-traced and insulated tubing
• Lower installed cost by reducing field labor and materials
• Built-in support for freeze protection and temperature maintenance
• Better protection from moisture, chemicals, UV exposure, and physical wear
• Long-term reliability and safety in demanding applications

For facilities that need better consistency in the field, fewer avoidable tubing problems, and a more reliable way to protect critical lines, an integrated tube bundle design offers a clear advantage.

Thermon Tube Bundle Products & Solutions

Thermon offers tube bundle solutions for a wide range of applications, from freeze protection and temperature maintenance to analyzer sample lines and high-temperature service.

Ultimately, Thermon aims to help customers match the right bundle design to the actual demands of the application, rather than forcing one approach to fit every condition.

Thermon organizes its tube bundle solutions into four main categories:

Electrically Heated Tubing Bundles

Electrically heated tubing bundles are designed for applications where freeze protection, temperature maintenance, or controlled electric heat tracing is required.

These solutions commonly serve general industrial heat trace processes, analyzer sample lines, CEMS applications, and high-temperature service.

Products include:

• Custom CEMS and Analyzer Sample Lines
• Heated Sample Lines – HSL1000
• Heated Sample Lines – HSL2000
• NI Non-Insulated Type NI
• ThermoTube® Type SL
• ThermoTube® Type SL – HT, HTX & HTX2
• TubeTrace® Type SEI/MEI – HT
• TubeTrace® Type SEI/MEI – HTX
• TubeTrace® Type SEI/MEI – HTX2
• TubeTrace® Type SI/MI
• TubeTrace® Type SP/MP
• TubeTrace® with BSX
• TubeTrace® with FP
• TubeTrace® with HPT
• TubeTrace® with HTSX
• TubeTrace® with MIQ
• TubeTrace® with VSX-HT
• Tubing Bundle Accessories

Steam or Fluid Heated Tubing Bundles

Steam or fluid heated tubing bundles are designed for applications where steam heating remains the preferred method for maintaining temperature and supporting consistent heat transfer.

Users may employ these solutions in applications where electric tracing is not the best fit, or where existing plant utilities support steam or fluid heating.

Products include:

• ThermoTube® Type SL – HT, HTX & HTX2
• TubeTrace® Type SI/MI
• TubeTrace® Type SP/MP

Preinsulated Tubing

Preinsulated tubing is a strong fit for applications that need thermal protection but do not require active tracing.

Thermon designs its ThermoTube® products to support reliable transport, energy efficiency, and weather-resistant performance. Additionally, they can help simplify installation with long coils, reduced waste, and built-in protection from environmental exposure.

• ThermoTube® Type SL

Tube Bundle Accessories

Tube bundle accessories help support installation, sealing, repair, and termination across tubing bundle systems.

Users can utilize these accessories, which include seal kits, patch and repair kits, and TubeTrace™ Terminator/FAK kits, to complete installation and maintain performance in the field.

• Tubing Bundle Accessories

Need a Tube Bundle Solution for Your Specific Application?

Every application has its own requirements, from operating temperature and exposure conditions to tracing method, tubing needs, and installation environment. Thermon offers tube bundle solutions designed to match those demands and support reliable performance in the field.
