Feedwater & Deaerators

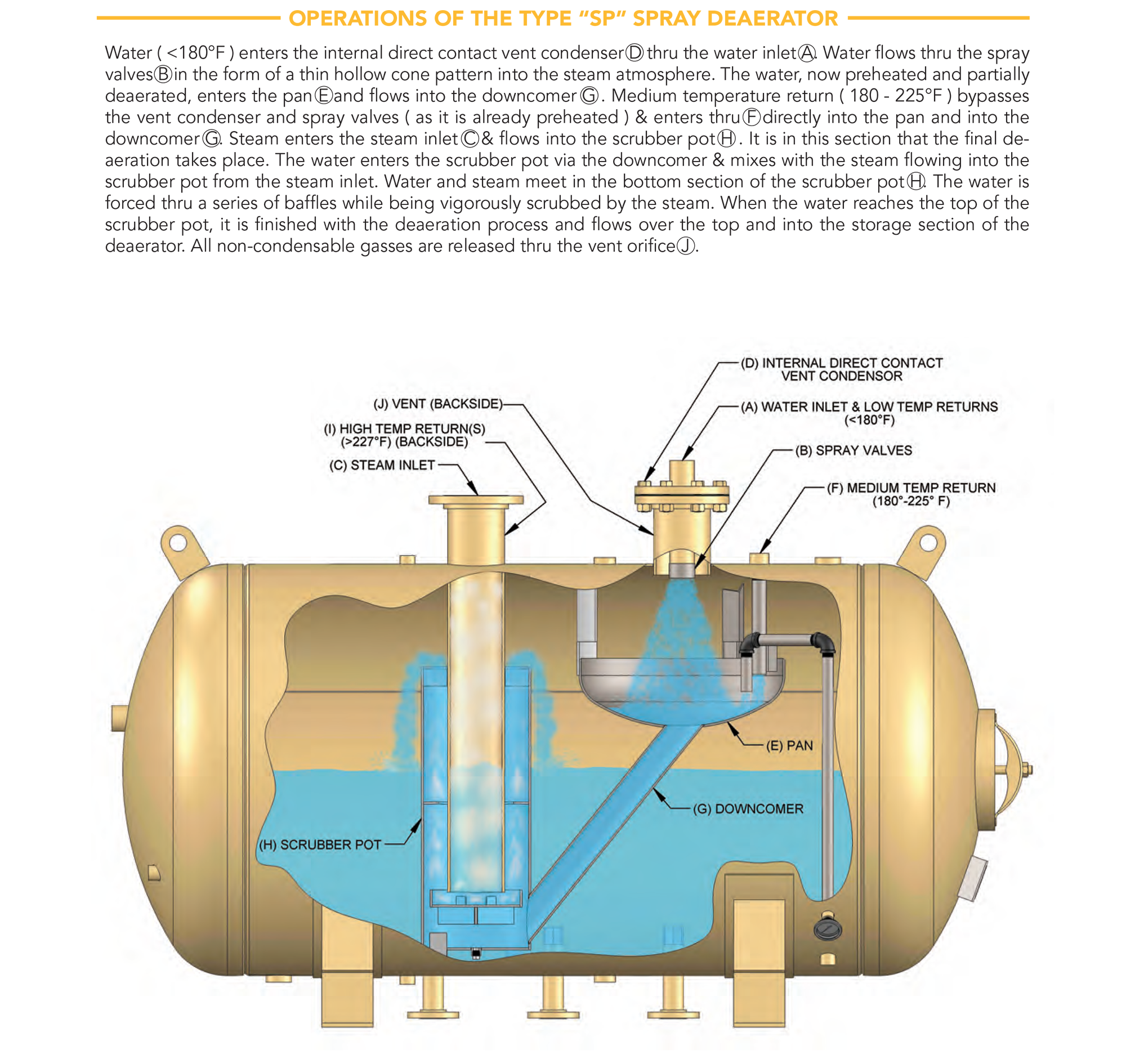

The SP-DA Spray-Type Deaerator removes oxygen and dissolved gases from boiler feedwater using a sparging process. Designed for effective deaeration in a compact footprint, it reduces corrosion risks and improves boiler longevity. Configurable with various tank sizes and options, the SP-DA integrates seamlessly with feedwater systems to ensure clean, treated water for optimal boiler performance.
Kurulum bilgileri, teknik özellikler ve ayrıntılı bilgiler için aşağıdaki PDF'leri indirin veya bir temsilci bulun. Kuruluşunuz için bu ürünü satın almaya hazırsanız aşağıdaki formu doldurarak fiyat teklifi isteyin.
- Oxygen removal to: 0.005 cc/liter or less
- Carbon dioxide removal: 100%
- Capacity range: 5,000 – 300,000 PPH
- Turndown ratio: 33:1
- Storage capacity: 10 minutes minimum
- Configuration: 100% makeup or 30% makeup / 70% condensate
- Design: Internal stainless steel vent condenser and spray valves
- Vessels rated for 50 PSIG with 1/16 in. corrosion allowance (ASME Code compliant)
- Boiler Feedwater Systems
- High Makeup Water Demand
- Process and Unity Boilers
- Institutional and Industrial Facilities
